LoRaWAN Pulse Counter
Professional 4-input digital logger for remote pulse counting and security sensing with 10-year battery autonomy.
Trackster’s Pulse Counter is a versatile IoT sensor designed to bridge traditional meters (Water, Electricity, Gas) with the digital world using long-range LoRaWAN technology.
Dual Operation Modes
Pulse Counting
Supports up to 200 Hz frequency. Ideal for high-speed utility metering and industrial production counting.
Dry-Input Security
Generates instant alerts when a circuit is opened or closed. Perfect for door sensors or machine status monitoring.
Ambient Monitoring
Built-in sensors report ambient temperature and battery health alongside your pulse data.

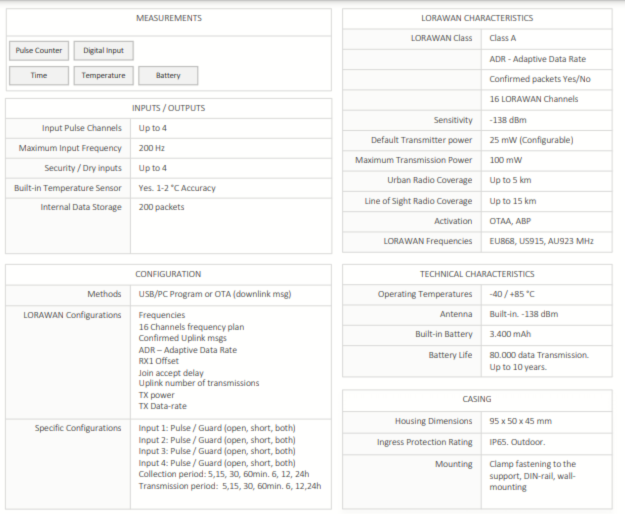

Technical Specifications
- Inputs: 4 Digital Inputs (Dry-Contact or Pulse)
- Frequency: Max 200 Hz (Pulse Mode)
- Battery Life: Up to 10 Years Autonomy
- Transmission: LoRaWAN Class A (Downlink support)
- Collection Interval: Configurable (5 mins to 24 hours)
- Circuit Type: Supports "Open Collector"
Start Metering
Request a technical datasheet or a customized quote for your facility.
Call NowTechnical Support Available
+91 98191 09211
Use Cases:
From smart city water management to industrial heat and electricity sub-metering, our pulse counter provides reliable data where traditional wiring is too expensive or impossible to install.
Frequently Asked Questions
Yes, the 4 inputs are independent. You could technically monitor a water meter on input 1 and a security door switch on input 2.
Configuration is simple via a USB connection using our free PC app, or remotely via LoRaWAN downlink commands.
Yes, the device fully supports Open Collector circuit types, which are standard for most industrial meters.
In typical industrial environments, it covers 2-5km, and up to 15km in line-of-sight rural conditions.
